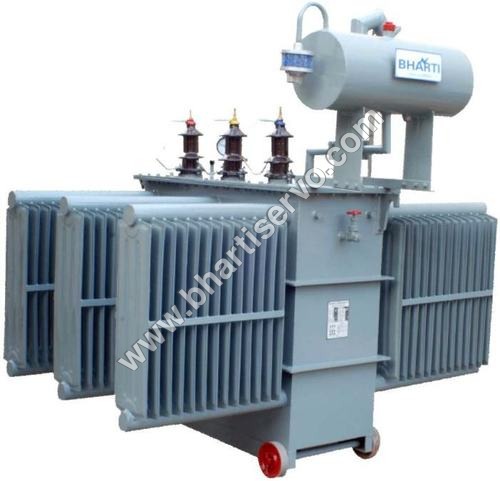

Electric Distribution Transformer

Product Description

Incorporated in the year 1981, we are noted as one of the well-known & reckoned manufacturers and exporters of Power Distribution Transformer. Our entire range of transformers is manufactured at our well equipped manufacturing unit using tested quality components & materials.  Widely used for distribution of electrical energy, these transformers are offered to clients without any delay. Before final dispatch, our Power Distribution Transformer is rigorously inspected on certain quality parameters.

Features:

• Ease of installation & maintenance
• Perfect design & construction
• Good efficiency & performance

Further Details:

We are providing Power Distribution Transformer and Voltage Power Transformer that are manufactured with customers' requirement and standard rating. Also, our transformers are designed & tested according to IS2026.

Range of Distribution & Power Transformer:

• High coupling capacitance value
• Maximum magnetic field leakage
• Leakage current
• Static electric noise transformers


Transformer Design Options:

• Indoor / Outdoor
• Single Phase / Three Phase
• Ground Mounted / Pole Mounted
• Hermetically Sealed Transformers / Conventional Type
• Corrugated Radiator / Conventional Radiator
• Copper / Aluminum Wound
• Fitting Accessories, as per requirements.

Construction:

Core: Core is engineered from imported high-grade cold rolled grain oriented silicon steel lamination. The Lamination cut at an angle of 45 degree Celsius. Mitered / Interleaved joints reduce the losses of core & magnetizing current. The core is clinched with steel channel stiffly to cut down the level of cartile sound.

Winding: Windings are designed to perfect the dynamic, thermal mechanical & electrical strives depending on the voltage/current requirement. The coils are wound with high conductivity electrolytic grade annealed wire & stripe, covered with top grade insulation. Cooling ducts are given between the windings & oil in order to decrease hot spot temperature and the temp. gradient.

Insulation & Oil: Insulation material like pre-compressed board, tube, bakelite, insulating top, epoxy/porcelains bushing, varnish, etc. are utilized for top quality and to assure long life of the transformers. Used as a coolant the Oil conforms IS 335, is filtered & centrifuged before filling into the transformer to guarantee free from moisture & dust.

Tanks & Radiator: All the tanks are built by cold/hot rolled steel plates by welding. They are outfitted with corrugated steel radiator sheets, in conformity with the capacity.

Paint: Exterior & interior surface are chemically cleaned & coated with red oxide, and two final paint coat outside of tank body for long & better life.

Temperature Rise: Engineered for maximum temperature rise, at fully rated load, 40 to 50 degree Celsius for aluminum wound, and 45 to 55 degree Celsius for copper wound transform.

Versatile Application Range

Engineered for versatility, this transformer accommodates the diverse power distribution demands of offices, commercial complexes, and telecom establishments. Its capacity to manage significant voltage differences ensures reliable and stable operations for mission-critical environments.


Durable Construction and Design

Built from high-quality mild steel and weighing 400 kg, the transformer is created for long-lasting service. This strong, industrial-grade construction resists corrosion and withstands challenging conditions, making it a trusted choice for both indoor and outdoor installations.


Reliable Power Distribution

Delivering seamless transformation from 440V high voltage to 110V low voltage, this unit supports three-phase electrical systems. It is especially effective in situations where uninterrupted power and safety are paramount, reducing power fluctuations and fostering efficient energy use.
